304 Stainless Steel Bi Direction Lobby Speed Train Station
Turnstile

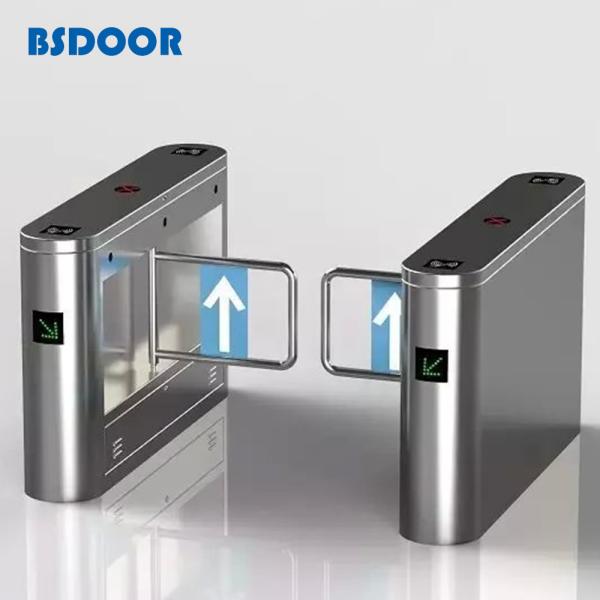

304 Stainless Steel Bi-Direction Speed Security Entrance Swing
Turnstile Barrier Gate For Public Lobby
Introduction:
This swing gate is an intelligent channel management equipment
developed, developed and produced by the company. The device
combines ingenious mechanical transmission, circuit board control,
LED lighting effects and various reading and writing technologies.
By configuring different reading and writing devices, intelligent
control and management of channel traffic can be completed.
The whole product frame adopts stainless steel laser cutting, CNC
bending forming, beautiful appearance, simple control by servo
control system, large speed range, high speed of servo motor,
stable torque characteristics, and servo motor itself with encoder
To form a high-precision, high-performance control system. The
system adopts a standard quick-swap electronic interface,
integrates a two-dimensional code scanner and a card reader, etc.,
and can conveniently integrate bar code, two-dimensional code, ID
card, IC card and other reading and writing devices on the device,
thereby It provides an orderly and civilized way for the entry and
exit personnel, and can prevent illegal personnel from entering and
leaving. At the same time, in order to meet the requirements of the
fire exit passage, a special fire button interface is provided in
the system, so that the gate can be automatically opened and the
personnel evacuated in an emergency.
Features:
1. Within direction indicator to show the current status of the
passage to pedestrians, guide pedestrians to pass correctly and
quickly
2. Within automatic power-off function when the system is powered
off, the access gate is opened to form a barrier-free access
3. Using several pairs of infrared sensors to prevent pedestrians
from illegally entering the passage, protecting pedestrians from
passing the passage smoothly and preventing trailing functions.
4. Within automatic reset function, after reading the card, if the
pedestrian does not pass within the time specified by the system,
the system automatically cancels the permission of this pass, and
the reset time value can be set online.
5. There is a LED indicator light on the cover of the box. When the
valid card is swiped, there will be a green arrow to indicate the
direction of passing;
6. Can be used in the same system with other styles of access
gates.
7. It has the function of fault self-check and alarm prompt, which
greatly facilitates maintenance and use. 8. It has a unified and
standard external electrical interface, which can be connected with
other reading and writing devices for easy integration, and remote
control and management can be achieved through a management
computer.
9. It can be expanded into an automatic identification system to
realize functions such as access control, attendance, and charges.
10. Can be used with other types of channel products.
Extendibility:
1. LED counter display
2. Casing and gate size can be lengthened
3. Logic judgment by photocells (8 pair or 10 pairs)
4. Speech reminder
5. Normal close or normal open adjustable
6. Led Light,sound alarm.
