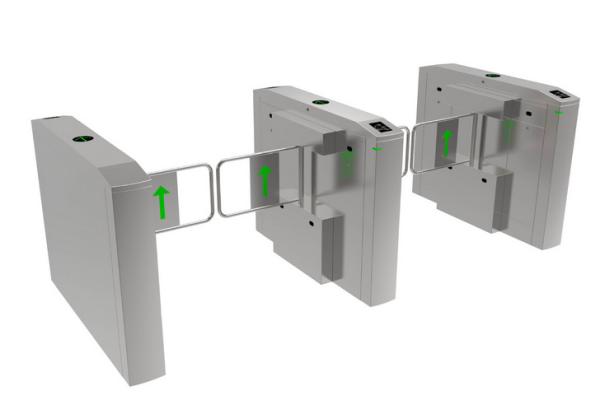

    Heavy Duty Solenoid Train Station Turnstile RFID Card Pedestrian Access Control

    Heavy Duty Solenoid Train Station Turnstile RFID Card Pedestrian Access Control


    RFID Card Pedestrian Access Control Face Recognition Time Attendance Swing Barrier Turnstile Gate


    Introduction:

    A turnstile (also called a baffle gate or automated gate in some regions) is a form of gate which allows one person to pass at a time.
    It can also be made so as to enforce one-way human traffic, and in addition, it can restrict passage only to people who insert a coin, a ticket, a pass, or similar. Thus a turnstile can be used in the case of paid access (sometimes called a faregate or ticket barrier when used for this purpose), for example to access public transport, a pay toilet, or to restrict access to authorized people, for example in the lobby of an office building.


    Applications:
    Turnstiles are used at a wide variety of settings, including stadiums, amusement parks, mass transit stations, office lobbies, airports, ski resorts, factories, power plants and casinos.

    Product advantages
    1. Cabinet part:
    1.1. Frame material: 304 #, thickness 1.2- 1.5 mm;
    1.2. Multi-layer drawing on the surface of the frame;
    1.3. The frame is welded by fixtures;
    2. Drive Movement part:
    2.1. Low noise;
    2.2. Movement frame material 6061 profile aluminum;
    2.3. The inner guide pulley adopts metal bearings;
    3. Electric control accessories:
    3.1. Switching power supply adopts brand power supply to make its operating
    voltage more stable;
    3.2. The infrared sensor uses a domestic brand, and the internal parts are
    imported parts;
    Third, customized extended functions:
    1. Counting and alarm functions;
    2. The material of the flap (retractable arm) is acrylic or soft flap. The colors are red, black and blue. The amount can be customized separately
    3. Case material is mainly 304 stainless steel, other materials can also be customized
    4. Remote control switch
    5. Dynamic face recognition
    6. Can add emergency escape function, in the case of special emergency, start by remote button
    7. The communication interface is mainly RS232 / RS485, other interfaces
    8. Box thickness standard 1.5mm can be customized 2.0mm
    9. Fingerprint recognition of time attendance
    10. QR code pass

    Technical Parameters

    PowerAC220C±10V, 50/60HZ;
    Machine coreFull Automatic/Semi-Automatic/Manual Resetting, three model available
    Operating Temperature-45ºC-60ºC
    Relative Humidity≤95%, No Condensation
    Passage Width≤600mm
    Passing Speed35 persons/min
    MechanismHeavy duty solenoid
    Input Connection+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
    Communication ConnectionRS485 Communication(full automatic)
    MaterialStainless steel 304,thickness is no less than 1.3mm
    Communication Distance1200M
    Running life5--8 Million(Continuous Opening and Closing Operation)
    Protect levelIP54
    Size1200*280*980(mm)
    custom made as demand
    ColourStainless Steel Brushed / Powder Coating(Optional)
    Operation PlaceSubway Station, Hoverport,Tourism Sports,Exhibition,
    Swimming Hall,Residence Area,Enterprise's Entrance and
    Exit Attendance,Gateway Guard,Charge Management,Special
    Access Control

    Enternal function


    The flap turnstile system is provided with a standard electric interface and can easily integrates

    the common 3rd party equipment with read/write facilities.


    1.

    access control system

    2.

    bar-code scanner

    3.

    Token /ID/IC card reader

    4.

    time & attendance system

    5.

    coin collector

    6.

    card collector

    7.

    consumption system

    8.

    ESD system and fare collection system

    9.

    biometric systems (fingerprint & face recognition)
