Access Control Passage Fast Lane Flap Barrier Turnstile RFID Card Reader

Ask Lasest Price
Brand Name :	Bester
Model Number :	BS-Y300
Certification :	CE，RoHs, ISO:9001
Price :	Negotiated
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	5000 pieces per month
Delivery Time :	About 3-7 Days After Receiving The Deposit(Based On The Quantity)

Add to Cart

Product Details
Company Profile

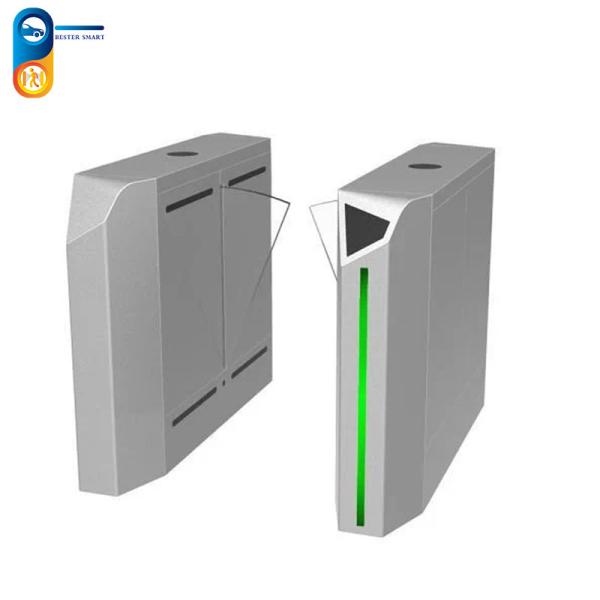

Access Control Passage Fast Lane Flap Barrier Turnstile RFID Card Reader

Access Control Passage RFID Card Reader Fast Lane Flap Barrier Turnstile

Access Control Passage RFID Card Reader Flap Barrier Gate Fast Lane Width Design

Product Brief Introduction

Product advantages

1. Cabinet part:

1.1. Frame material: 304 #, thickness 1.2- 1.5 mm;

1.2. Multi-layer drawing on the surface of the frame;

1.3. The frame is welded by fixtures;

2. Drive Movement part:

2.1. Low noise;

2.2. Movement frame material 6061 profile aluminum;

2.3. The inner guide pulley adopts metal bearings;

3. Electric control accessories:

3.1. Switching power supply adopts brand power supply to make its operating

voltage more stable;

3.2. The infrared sensor uses a domestic brand, and the internal parts are

imported parts;

Standard functions & features of Flap Turnstiles Gate

1) On-line or off –line mode(optional)

2) DC Brushless Motor, Maintenance Free

3) With direction indication, guiding passenger to entry and exit.

4) The access mode can be adjusted arbitrarily

5) Light and sound alarm indication function, preventing illegal entry or irregular passing

6) Has a normally open button function

7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000

Technical Specifications:

Model	BSD-Y100	BSD-Y100
Classifications	Single-core mechanism	Dual-core mechanism
Framework	304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)
Thickness of ply	1.3mm
Finish	brushed surface, polishing surface or anti-fingerprint surface (optional);
Size (LWH)	1200mm300mm980mm (default)
Material of flap	different color Acrylic flap available or Red Soft flapper optional
Stretching-out flap length	250~275mm
The inductive card reader dimension	equipped with the standard mounting brackets or tailor.
Machine center	Germany technological motor
Power voltage	AC220V±10%, 50Hz±10%
Driver motor	DC Brush motor
Main-board voltage	12V DC
In-built Infrared	6 pairs/lane
Passing speed	30 persons/min
Passage Width	550mm
Opening / closing time	0.6 seconds
The time required to running state after power on	3 seconds
Automatic reset time after the failure	10 seconds
Mean time to failure	min. 5 000 000
Operation temperature	-10℃ ~ +70℃
Relative humidity	less than 95% not condensed
Working Environment	Indoor/Outdoor (with rain-tent cover)
Input port	relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Communications port	RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet
Warranty	12 months

Extend Functions

The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.

1.	access control system
2.	bar-code scanner
3.	Token /ID/IC card reader
4.	time & attendance system
5.	coin collector
6.	card collector
7.	consumption system
8.	ESD system and fare collection system
9.	biometric systems (fingerprint & face recognition)

Access Control Passage Fast Lane Flap Barrier Turnstile RFID Card Reader
