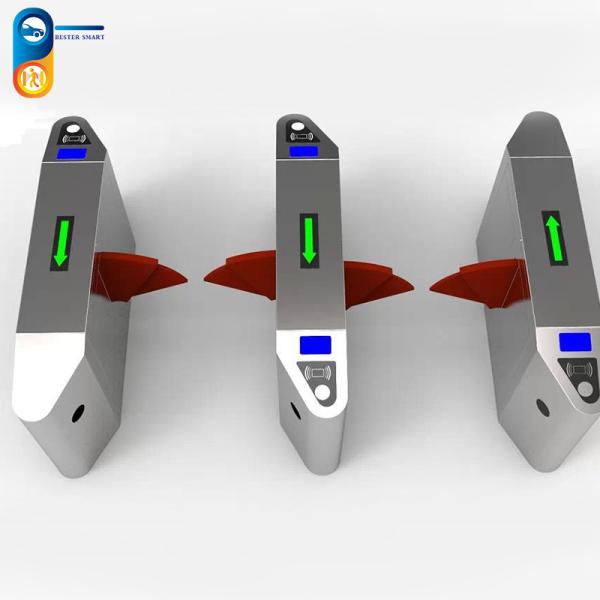

304 Stainless Steel DC 24V Flap Barrier Gate For Office Building Hotels

Access Control Passage RFID Card Reader Flap Barrier Gate Fast Lane Width Design

Product Brief Introduction

Intelligent flap barrier is a brand-new product of our Company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. Flap barrier has features of precise craftsmanship.comprehensive functions and high technology.

Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier. Choosing different identification equipment and applying reliable security protection devices, alarm devices direction indicator to realize the intelligent management of access control.

Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.

Common Malfunctions and Solutions

1. Power supply is connected, but parts of the system or the whole system is power off.
A. The 220V AC power socket is not connected well.
B. The power output terminal and control board is not connected .
C. The fuse on the control board is broken.

2. The gate shows no reaction with a open signal.
A. The open indicator light on the control board does not receives the signal.
B. The open signal lines is not connected well.
C. The fuse 5A is burned.

3. Giving the open signal, one machine can open, but the other one can not.
A. the connection lines between these two machines are not connected well.
B. plugs on the control board is not connected well.

4. Giving the open signal, it can open but can not auto-close.
A. The receiving side and transmitting side of the infrared photocell are not fixed in the horizontal position or the infrared photocell are not connected well.
B. Some obstacles in the middle of the infrared photocell

5. The gate already open or close in place, but it did not stop
A. The limit switch is broken.
B. The limit switch is not fixed in right position.

6. The gate can not close in time after the passenger already passed.
A. The he infrared photocell is broken.
B. The infrared photocell is fixed in right position or connected well.

Technical Specifications:

Extend Functions

The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.

Bester (Foshan Bester Smart Access Co.,Ltd) is the enterprise integrating intelligent machinery and electronic technology in road safety machines.
Our main products are turnstile, automatic turnstile, tripod turnstiles, full height turnstiles, sliding gate operators, swing gate operators, flap barriers,

swing barriers, speed gates, automatic barrier gate(barrier, barrier gate, boom barrier, automatic barrier, traffic barrier, car park barrier, road barrier) for car parking lot.
The company have experience with more than 15 years, have been sold to more than 100 countries and regions. The company has sold more than 150,000 units a year.
Besides, we are also professional on providing OEM/ODM service for overseas customers, warmly welcome you to visit our factory and hope we can work together to supply you our high-quality system, offer you the factory cost price, provide you the best service, looking forward to serving you in the near future.
