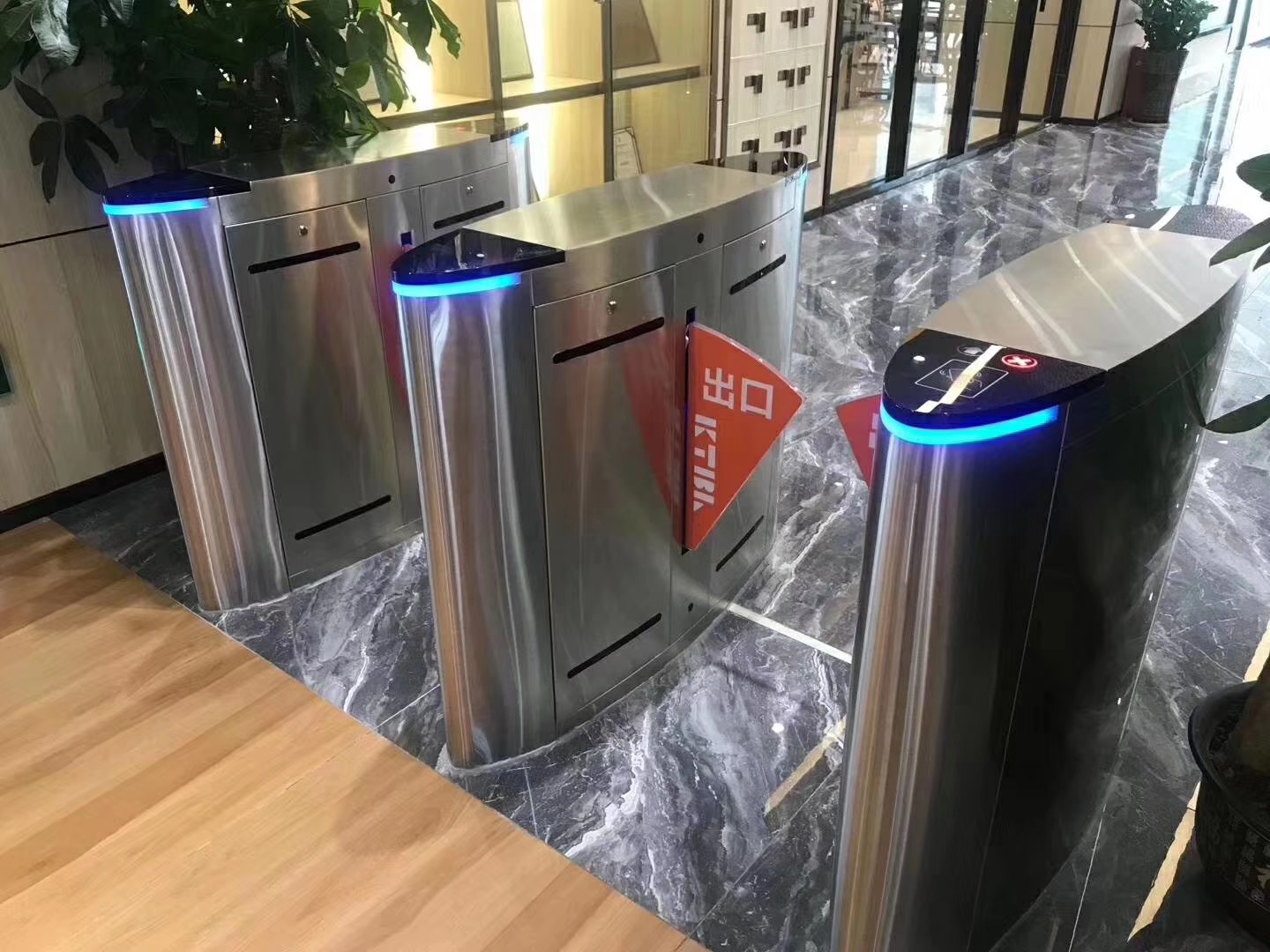

Metro Subway Traffic Management Flap Barrier Turnstile Security
Entrance
Pedestrian Passing Traffic Management Metro Or Subway Turnstile
Gate Access Control Flap Barrier Gate
Functions and Features:
1. The design is of integration of machinery and electronic
structure, with special drive style and reliable machinery auto
locking solution, precise 2. worm gear, and cabinet composite
structure.
3. Malfunction self-detection. Which is easy for operation and
maintenance.
4. Flap work synchronously.
5. Flap auto reversing when meeting exterior force.
6. Audible and visual alarm in case of unauthorized access.
7. Auti-reverse passing
8. Operational mode can be set up through the built-in menu on the
control board.
9. Auto reset function, after the flap open if no pedestrian passes
in a fixed time, the system will cancel the order and the
auto-reset time is adjustable.
10. Flaps open when power off, and auto-close when power on.
11. Compatible with diverse access control devices.
12. Pedestrian flow directions can be single or double directions.
13. Available for two-way traffic lights, which can prompt the
state---pass or no-entry.
14. RS232 and LAN sockets are available to connect the computer.
Main Technical Specifications:
1) Material: SS304,thickness is no less than 1.5mm
2) Motor Material: steel and aluminum alloy
3) Gate Opening and Closing time:1S
4) Passing Speed: 30~40persons/min
5) Power: AC220C±10V,AC110C±10V
6) Motor: DC Brushless Motor, 24V
7) Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V
pulse, Current>10Ma
8) Infrared Sensors: 6 Pairs
9) Relative Humidity: <95%, No Densation
10) Operating Temperature: -25°C-50°C
11) Working environment: indoor and outdoor(added the rain-shed)
12) Protection Grade: IP32
Technical Specifications:
| Model | BSD-Y100 | BSD-Y100 |
| Classifications | Single-core mechanism | Dual-core mechanism |
| Framework | 304# Stainless Steel (default), 201# or 316# Stainless Steel or
Paint (optional) |
| Thickness of ply | 1.3mm |
| Finish | brushed surface, polishing surface or anti-fingerprint surface
(optional); |
| Size (L*W*H) | 1200mm*300mm*980mm (default) |
| Material of flap | different color Acrylic flap available or Red Soft flapper optional |
| Stretching-out flap length | 250~275mm |
| The inductive card reader dimension | equipped with the standard mounting brackets or tailor. | |
| Machine center | Germany technological motor |
| Power voltage | AC220V±10%, 50Hz±10% |
| Driver motor | DC Brush motor |
| Main-board voltage | 12V DC |
| In-built Infrared | 6 pairs/lane |
| Passing speed | 30-40 persons/min |
| Passage Width | 550mm |
| Opening / closing time | 0.6 seconds |
| The time required to running state after power on | 3 seconds |
| Automatic reset time after the failure | 10 seconds |
| Mean time to failure | min. 5 000 000 |
| Operation temperature | -10℃ ~ +70℃ |
| Relative humidity | less than 95% not condensed |
| Working Environment | Indoor/Outdoor (with rain-tent cover) |
| Input port | relay dry contact signal; +12V level signal and pulse width
>100ms, DC12V pulse signal |
| Communications port | RS232/ RS485 electric standard, communications range≤1200m.
Available to connect with external CAN BUS and Ethernet |
| Warranty | 12 months |
Extend Functions
The flap turnstile system is provided with a standard electric
interface and can easily integrates the common 3rd party equipment
with read/write facilities.
| 1. | access control system |
| 2. | bar-code scanner |
| 3. | Token /ID/IC card reader |
| 4. | time & attendance system |
| 5. | coin collector |
| 6. | card collector |
| 7. | consumption system |
| 8. | ESD system and fare collection system |
| 9. | biometric systems (fingerprint & face recognition)
|
