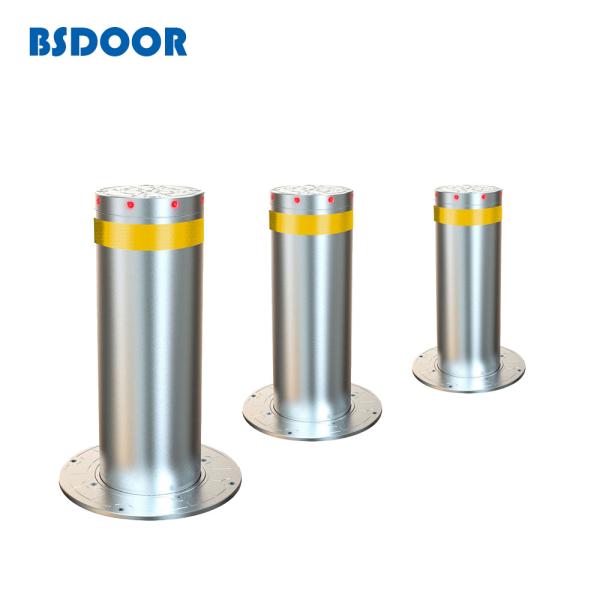

Industrial Roadway Traffic 800mm Electric Rising Bollards 8K Mirror
Surface
Roadway Automatic Road Traffic Industrial Level Controlled 8K
Mirror Surface Hydraulic Rising Bollard System
Hydraulic automatic bollard mainly consists of oil pump unit and
steel frame construction. It use soil pressure as dynamic to
realize the rise/fall of bollard.
As a moving device, it is usually installed at vehicle
entrance/exit. It rises to block the vehicle and falls the ground
level to authorize free passing.
Rising hydraulic bollards Feature
High security and anti-collision ability
Pneumatic air pump in control cabinet could procide large power
safely for a long time.
Electronic control, automatic rise/fall
High system independence
MAIN FEATURES
1. Automatically raise/lower/stop. The automated bollards adopt a
heavy duty hydraulic power pack and operate by integrated control.
Easy to install and operate. Built-in led flashing lights and
reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency
controller, the raise/lower speed 3-6s is adjustable. It can stop
emergently during raising/lowering process. The control signal is
electric transmission, quick and reliable.
3. Firm foundation plate. Thicken seamless 304 stainless steel with
strong bearing capacity more than 100 tons. Rust protection and
distortion resistance.
4. Built-in valve. In case of emergent issue for example power
failure, the bollard can be lowered by back up battery manually to
make sure the passage of pedestrians and vehicles free to go if
needed.
5. Adopt high quality great power motor, the bollards can
raise/lower speedy, work stable and durable with 1500 cycles
working frequency per day. The motor can be disassembled for easy
maintenance.
6. Multiple security protection. Use high pressure air rifle to
seal up the vent, the motor can work when soaked in water with
electricity leakage protector.
PRODUCT PARAMETERS
| Item | SPECS |
| System control | Integrated electric and hydraulic |
| Diameter | 219,273,324mm |
| Outer box size | φ350*1120 |
| Rising height | 600mm (customized: 800mm, 1000mm) |
| Thickness | 6mm (customized: 8mm, 10mm, 20mm) |
| Material | 304 Stainless steel |
| Through pressure | can bare more than 120 tons of container trucks |
| Crash rating | K12 |
| Rising / Falling speed | Rising speed: ≤ 3s (adjustable) Falling speed: ≤ 3s (adjustable) |
| Power supply | 3 phase power 380V(control voltage 24V) |
| System power | 3.7KW |
| Level of protection | IP68 |
| LED light | Ring LED light, Top LED light (optional) |
PRODUCT FUNCTIONS & FEATURES
1. Anti-collision:It can be used normally after being hit by a
12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle,
Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column,
anti-collision steel beam column,
4 navigation rods
4. Can be manually lowered in the event of a power outage
5. Linkage interface
6. Reversible operation according to requirements during ascent and
descent
7. Noise during operation of the device≤60 dB
8. Waterproof integrated hydraulic drive
9. Control solenoid valve 24V
10. Control box display text adjustable (up, down, start, time
control adjustment)
11. Display text in English
12. Water immersion performance:no leakage during 48 hours and
normal lifting
13. Anti-corrosion performance level: 9
