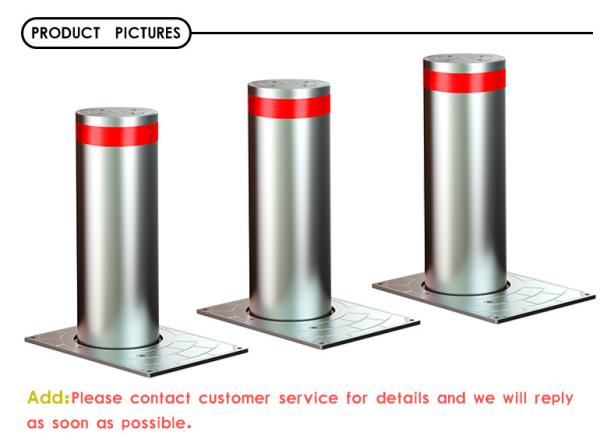

219mm Electric Rising Bollards
2020 Hydraulic Automatic Rising Bollards Remote Control Security
Bollards 219mm Road Traffic Lifting Road Blocker
PRODUCT OVERVIEW
The rising bollards are widely used in highway toll stations,
checkpoints, prisons, airports, government agencies, embassies,
military bases, customs, banks, industrial and mining enterprises,
ports, warehouses, parking lots, and all places where vehicle
traffic is restricted.
The placeman sends instructions through the control system, and the
hydraulic transmission enables the roadblock device to quickly
ascend and descend. After the vehicle passes, the roadblock is
automatically lifted and lowered by the inductive detection
automatic command of the roadblock device or the manual button
operation; to control the lane, the door is released or closed. To
effectively prevent vehicles from forcibly punching cards.
The product adopts hydraulic drive technology for mandatory
interception, strong load-bearing and anti-collision capability,
simple and flexible operation, hydraulic transmission, stable and
fast action, low noise, strong traffic capacity, safe and reliable,
strong carrying capacity and stable lifting.
The rising bollards can be used together with the traffic barrier
gate, the smart card charging management system and the access
control attendance system to form a complete crossing management
system. (added according to user requirements)
cylindrical lifting bollard is automatic hydraulic type. It is
mainly used to control the passage of road vehicles. It can be used
together with the gate control system, or it can be used alone;
According to the different needs of different customers, it has a
variety of configuration options for users to meet the functional
requirements of various customers.
ADVANTAGE FEATURES
- Different thickness of steel is available (default 6 mm)
- Different color is available
- Customized size is available
- Steady and safe due to the OMRON PLC control system
- Speedy rising time and durable quality with hydraulic pressure
- Housing with durable and stainless Galvanization
- Optimization of frame structure, high anti-impact capability, high
loading capability
- High security and anti-collision ability
- With a reflective band and a low energy consumption LED light at
night
PRODUCT PARAMETERS
| Item | SPECS |
| System control | Integrated electric and hydraulic |
| Diameter | 219,273,324mm |

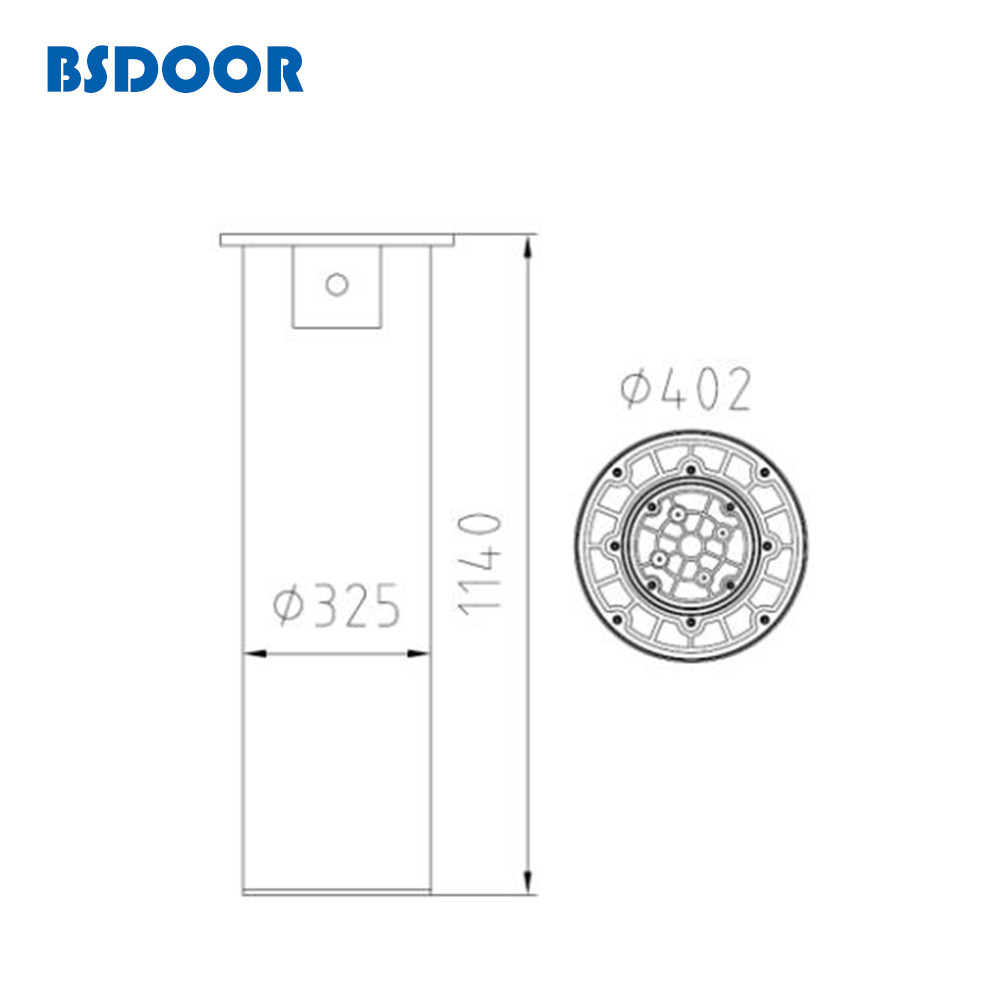

| Outer box size | φ350*1120 |
| Rising height | 600mm (customized: 800mm, 1000mm) |
| Thickness | 6mm (customized: 8mm, 10mm, 20mm) |
| Material | 304 Stainless steel |
| Through pressure | can bare more than 120 tons of container trucks |
| Crash rating | K12 |
| Rising / Falling speed | Rising speed: ≤ 3s (adjustable) Falling speed: ≤ 3s (adjustable) |
| Power supply | 3 phase power 380V(control voltage 24V) |
| System power | 3.7KW |
| Level of protection | IP68 |
| LED light | Ring LED light, Top LED light (optional) |
PRODUCT FUNCTIONS & FEATURES
1. Anti-collision:It can be used normally after being hit by a
12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle,
Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column,
anti-collision steel beam column,
4 navigation rods
4. Can be manually lowered in the event of a power outage
5. Linkage interface
6. Reversible operation according to requirements during ascent and
descent
7. Noise during operation of the device≤60 dB
8. Waterproof integrated hydraulic drive
9. Control solenoid valve 24V
10. Control box display text adjustable (up, down, start, time
control adjustment)
11. Display text in English
12. Water immersion performance:no leakage during 48 hours and
normal lifting
13. Anti-corrosion performance level: 9
