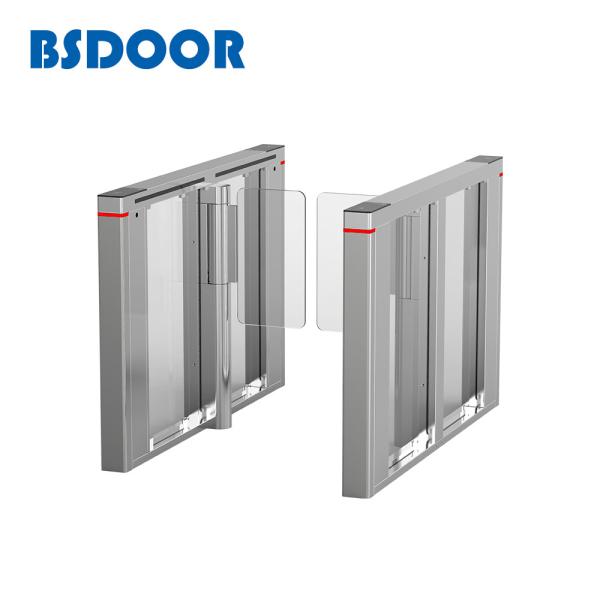

Access Control Servo Motor Swing Speed Turnstile Gate With RFID
Card Reader
PRODUCT DESCRIPTIONS:
♦ Adopt Servo motor,it has longer lifespan and safety.
♦ Non polar collision avoidance,it has strong resistance to
destruction.
♦ Super ego protection, it is the preferred choice for
non-motorized vehicle passageway.
♦ Cutting edge new ARM technology,which has better expand-ability
and high cost performance.
♦ Merits for smooth running,speed adjustable and low wear.
♦ Adopt module structure design,it has easier operation and less
maintenance.
♦ Lane size can be setting and has good anti-pinch performance to
protect passengers.
♦ In addition to function of standard swing turnstile,luxury
fastlanes merit for:high-end artistic appearance,exquisite
workmanship,faster passing speed.
All-around Personal Safety Protection
The turnstile opens automatically to evacuate people in the event
of an emergency, such as fire, power
failure, etc.
Infrared and mechanical anti-clamping functions provide double
protection.
The gate can be pushed slowly when a sudden impact force is applied
beyond the safety range so as to protect the
machine and the pedestrian effectively.
All electric modules are designed to operate under the safety
voltage of 24V, and configured with residual current
protective device to effectively avoid electric shocks.
Features
1. The turnstile opens automatically to evacuate people in the
event of an emergency, such as fire, power failure, etc.
2. Infrared and mechanical anti-clamping functions provide double
protection.
3. The gate can be pushed slowly when a sudden impact force is
applied beyond the safety range so as to protect the machine and
the pedestrian effectively.
4. All electric modules are designed to operate under the safety
voltage of 24V, and are configured with residual current protective
devices to effectively avoid electric shocks.
5. RFID access controller, fingerprint reader, facial identify
reader, qr code reader, barcode reader, consume system optional.
SPECIFICATIONS:
| Framework | 304# Stainless Steel (default), 201# or 316# Stainless Steel or
paint (optional) |
| Thickness of ply | 1.7mm |
| Finish | brushed surface, polishing surface |
| Shell's size (L*W*H) | 1400mm*150mm *990mm (default) |
| Swing arm material | Tempered glass or Acrylic (optional) |
| Stretching out swing length | 260mm~600mm |
| The inductive card reader dimension | equipped with the standard mounting brackets or tailor. |
| Machine center | Germany technological motor |
| Power voltage | AC220V±10%, 50Hz±10% |
| Driver motor | DC36 servo motor |
| Main-board voltage | 12V DC |
| In-built Infrared | 6 pairs/passageway |
| Passing speed in normally open mode | 50 persons/min |
| Passing speed in normally closed mode | 40 persons/min |
| Passage Width | 600mm |
| Swing arm transmission angle | 180° |
| Swinging direction | unidirectional or bi-directional |
| Opening / closing time | 0.1 seconds |
| The time required to running state after power on | 3 seconds |
| Automatic reset time after the failure | 1 seconds |
| Mean time to failure | min. 5 000 000 |
| Operation temperature | -10℃ ~ +70℃ |
| Relative humidity | less than 95% not condensed |
| Working Environment | Indoor/Outdoor (with rain-tent cover) |
| Input port | relay dry contact signal; +12V level signal, pulse width >100ms,
DC12V pulse signal |
| Communications port | RS232/ RS485 electric standard, communications range ≤1200m.
Available to connect with external CAN BUS and Ethernet |
Application areas:
Office space: business buildings, government agencies (prisons,
detention centers), etc.
Science and education units: institutions of higher learning,
research institutes, kindergartens, libraries, etc.
Commercial service places: supermarkets, business buildings,
hotels, banks, concert halls, convention centers, etc.
Leisure and entertainment venues: stadiums, parks, scenic spots,
playgrounds, leisure clubs, etc.
Transportation site: bus station, railway station, high-speed rail
station, subway station, ferry port, airport, etc.
